Telescope Accessory Thread Sizes Explained of 2026 Guide for Stargazers

Few astronomical headaches feel worse than stepping outside into freezing backyard air only to realize your new planetary camera won’t thread onto your visual back. Frustrating sensor spacing errors, wobbly barrel connections, and stripped aluminum rings often ruin an observing night before the telescope even cools down. Getting your optical gear to mesh properly requires having telescope accessory thread sizes explained clearly so you know exactly which adapters bridge the gap between optical tubes and imaging sensors. Deep-sky imaging or casual lunar observation runs much smoother when you sort out thread standards like M42 and M48 ahead of time. Backyard observers preparing for stargazing with the best telescopes for space frequently face these exact interface challenges when swapping accessories.

Standard push-fit 1.25-inch and 2-inch barrels rely on thumbscrews or brass compression rings, but threaded connections provide the rigid, tilt-free optical alignment that heavy camera bodies require. Subtle thread pitch variations between standard photographic T-threads and metric astronomy fittings can easily cross-thread soft anodized aluminum if forced. Based on manufacturer specifications and common equipment tolerances, selecting matching adapters like precision extension tubes and step rings preserves your optical train alignment. A reliable thread match keeps your light path free from vignetting while eliminating annoying mechanical flexure during long exposures.

Frequently Asked Questions

What is the difference between standard M42 threads and T-threads?

Standard T-threads use an M42x0.75mm pitch, whereas vintage camera M42 lenses feature an M42x1.0mm pitch. Forcing a vintage camera lens onto a modern T-thread adapter will quickly cross-thread and ruin the aluminum fittings because the thread spacing does not align. Most astronomy accessories labeled casually as M42 actually utilize the finer 0.75mm pitch specification. Verifying this pitch metric ensures your visual backs and camera rings seat flush without binding.

Why do modern astrophotography setups prefer M48 over M42 threads?

M48 threads provide a wider 48mm clear aperture that prevents optical vignetting on larger camera sensors. Standard M42 adapters often clip incoming light cones on fast optical systems below f/6 or on APS-C and full-frame sensors. Upgrading to an M48x0.75mm connection maintains full edge-of-field illumination across your entire sensor. Modern focal reducers and field flatteners routinely adopt M48 threads for this optical benefit.

Are telescope filter threads standardized across different brands?

Yes, standard astronomical filters follow recognized metric thread dimensions across almost all brands. Standard 1.25-inch eyepieces accept M28.5×0.6mm filter threads, while 2-inch oculars and accessories take M48x0.75mm filters. Subtle thread depth variations between brands can occasionally cause filters to bottom out early, but the diameters remain constant. Checking popular astronomy guides can help clarify mounting techniques across various optical tube accessories.

How does backfocus distance relate to telescope accessory thread sizes in 2026?

Backfocus refers to the exact mechanical spacing required between optical correctors and your camera sensor, which is maintained using threaded extension tubes. M48 and M42 extension rings allow astrophotographers to place dedicated sensors at the precise distance required by field flatteners. Threaded spacer rings prevent mechanical slip and sensor tilt that often ruin corner star shapes. Precise thread stacks maintain steady alignment throughout long imaging runs.

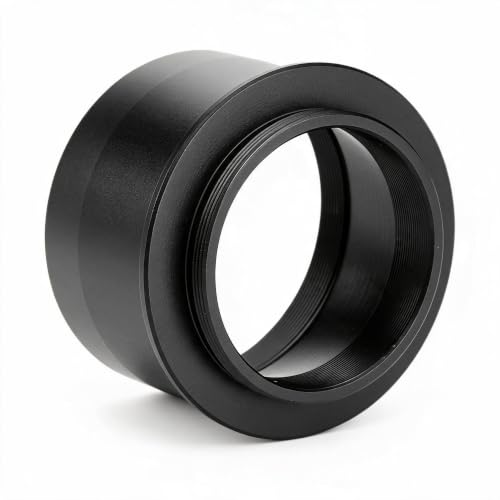

Can you convert a 2-inch telescope focuser to accept threaded camera adapters?

Yes, simple adapter nosepieces convert standard 2-inch push-fit focuser drawtubes directly into male M42 or M48 threads. These metal adapters slide directly into your telescope visual back and lock in place using thumbscrews or compression collars. Many premium adapters include internal 2-inch filter threads on the front nosepiece to hold light pollution or nebula filters. This accessory builds a solid mechanical connection between visual focusers and dedicated imaging gear.

Why is an understanding of telescope accessory thread sizes explained essential when buying extension tubes?

Extension tubes feature specific thread diameters and pitch steps, meaning an M48 tube will never screw into an M42 or M54 interface without a step ring. Knowing your exact hardware dimensions prevents ordering mismatched components that cause sensor tilt or fail to seat. Inspecting equipment specifications before purchasing guarantees your optical train screws together rigidly without mechanical play.
